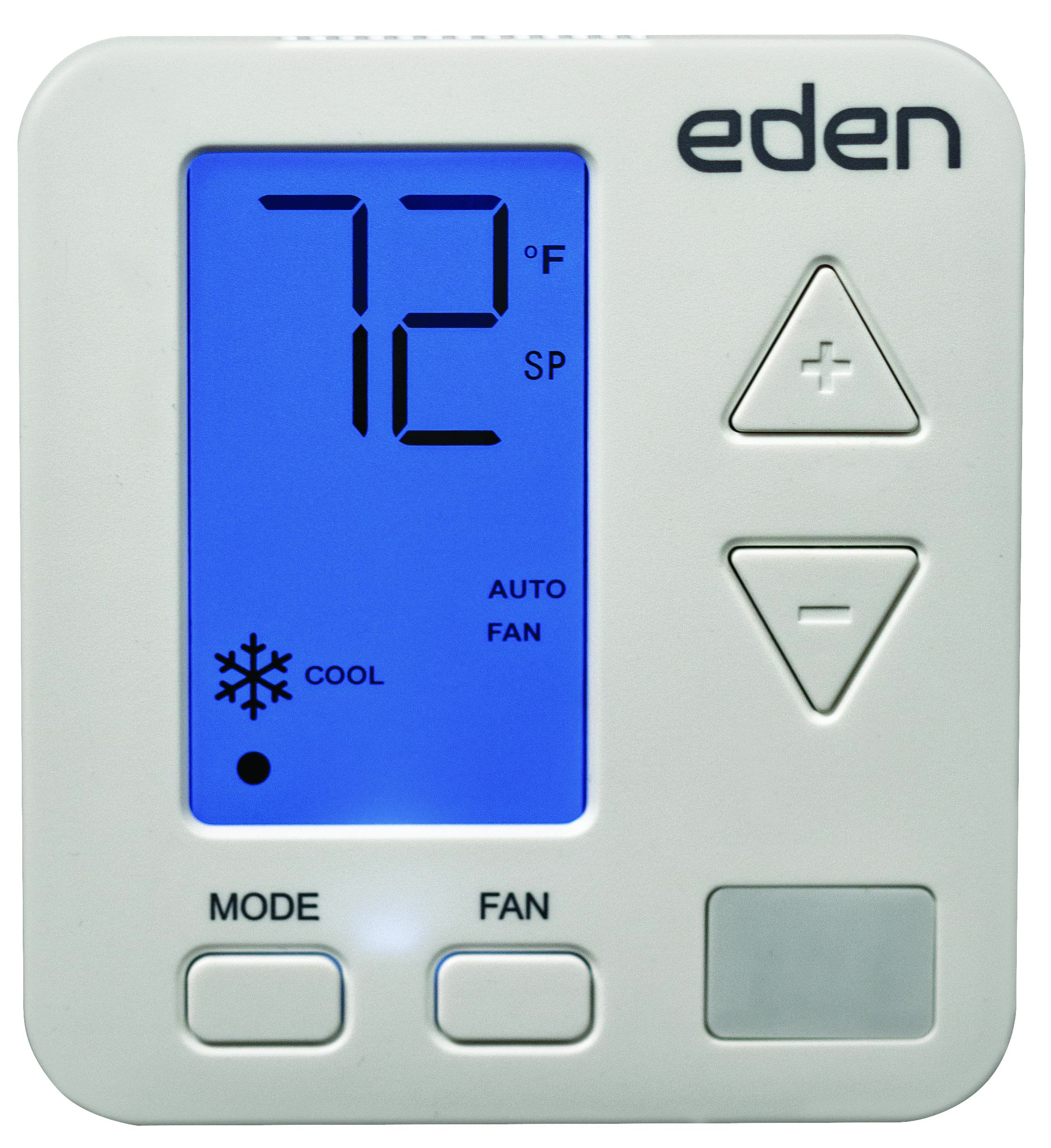

The Eden Remote RF Thermostat can control the Amana® brand Eden PTAC from anywhere in the room.
It is powered by 4 AA batteries (2 for back light and 2 for thermostat operation, included) or low-voltage connections.
The large LED display and color-coded temperature controls provide easy controls for guest comfort. The PTAC.
Temperature settings can be changed at either the unit or the thermostat and changes are automatically relayed to the other device within seconds.
- Large back-lit display
- 4 AA battery support 2 batteries for back-light, 2 batteries for TSTAT
- Optional 24-volt AC power (jumper selectable)
- Built in occupancy detector
- Tamper screws
- Software tamper detection ability
- Large buttons for +/- degrees
The antenna communicates to the Amana Eden suite of devices via an encrypted 2.4 Ghz signal using the 802.15.4 standard.
For the remote thermostat to operate, the in-room PTAC must be equipped with a Eden gateway antenna.
The occupancy detector in this unit acts only as secondary detection and must be used with both a DD01E and DT01A.
